Wisent LZ460RHA
LZ460RHA
Semi-automatic hydraulic

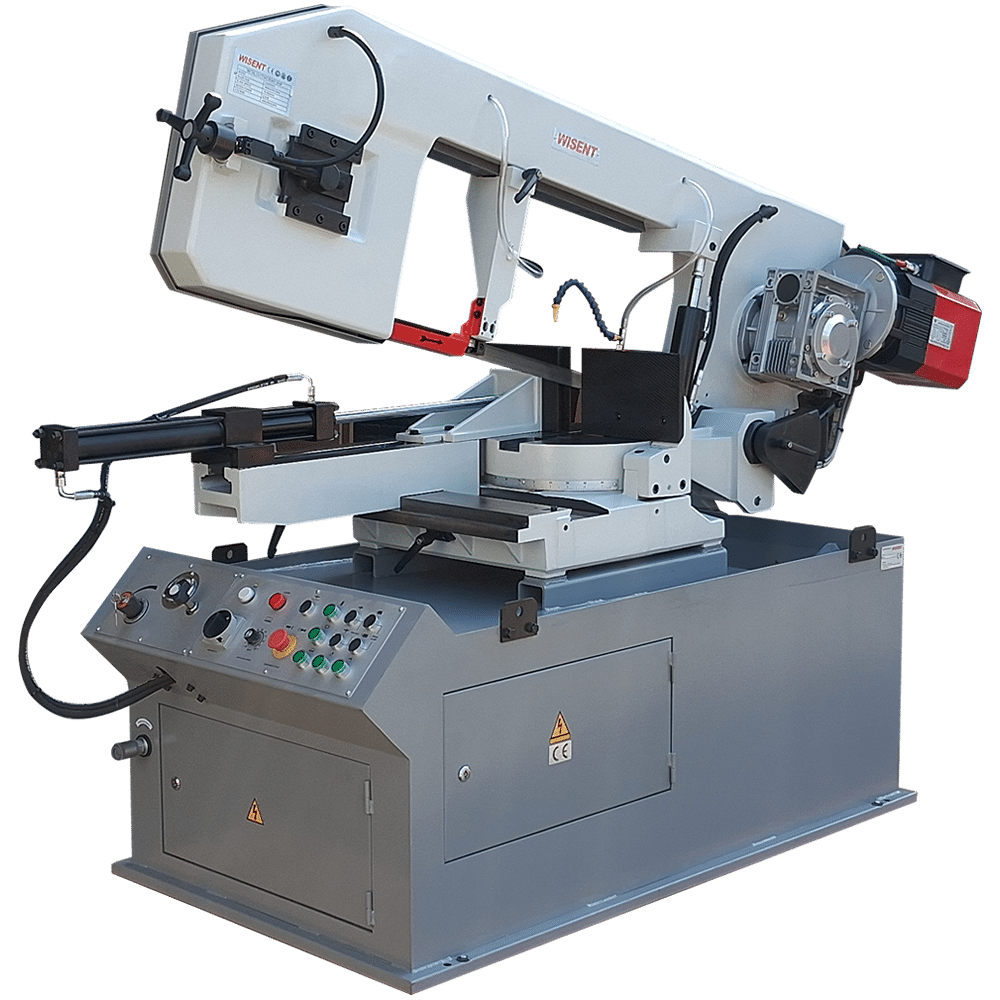

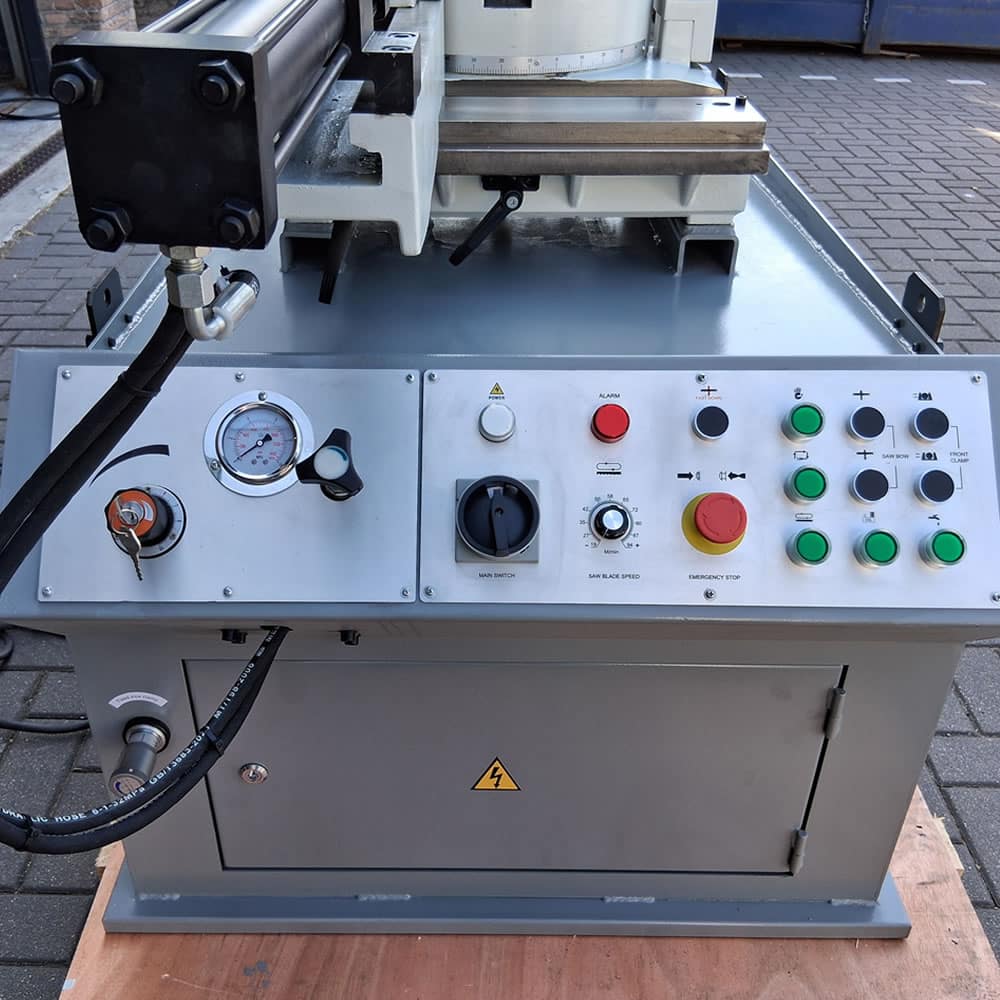

The Wisent LZ460RHA bandsaw machine is a semi-automatic hydraulic band saw machine. The machine is easy to use from the central control panel, and equipped as standard with a hydraulic clamp, infinitely adjustable saw feed, automatic saw arc lifting with height adjustment and coolant system.
In stock
Original price was: € 15.200,00.€ 12.900,00Current price is: € 12.900,00. excl. BTW € 15.609,00 incl. BTW
Product description
Specifications
LZ460RHA
The Wisent LZ460RHA band saw machine is a semi-automatic hydraulic bandsaw machine. The machine is easy to use from the central control panel, and equipped as standard with a hydraulic clamp, infinitely adjustable saw feed, automatic saw arc lifting with height adjustment and coolant system. The machine is suitable for heavier and continuous sawing up to Ø 330mm.
The Wisent LZ460RHA comes complete with
- Bi-metal M42 saw blade
- Base cabinet
- Coolant installation
All Wisent sawing machines can be expanded with MPS roller conveyors and MPS measuring systems.
Technical specifications
Voltage
3Ph / 400Volt

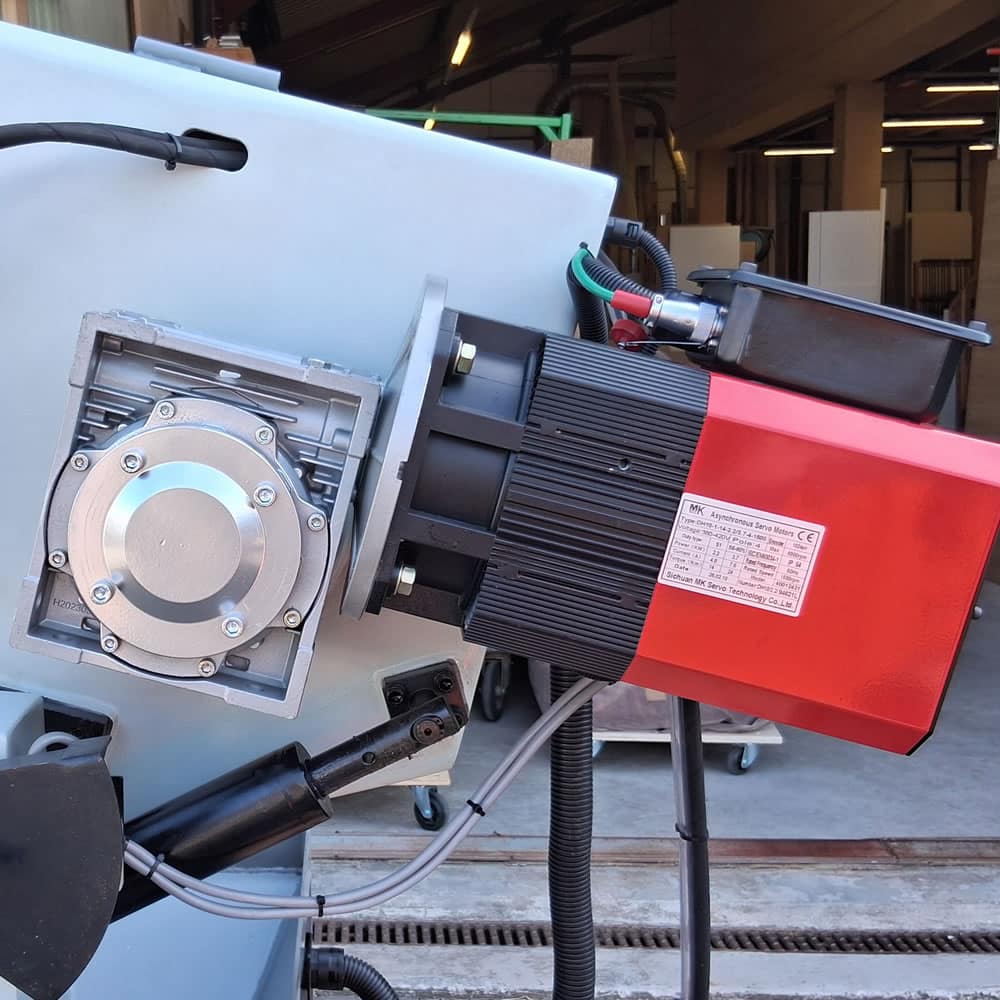

Motor power
2,2kW
Cutting speed
Variable speed (inverter), 20–90 m/min
Vice opening
460 mm
Coolant system
Standard

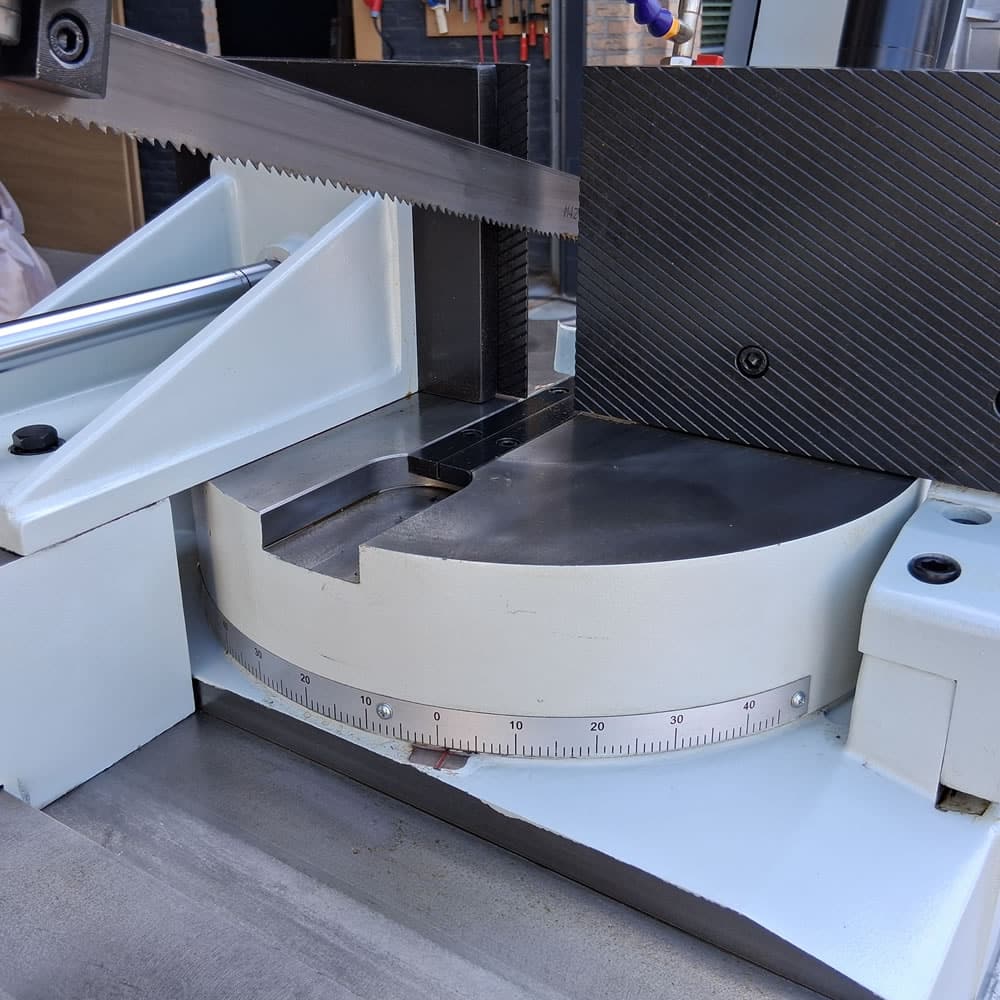

Mitre cutting L+R
45 – 0 – 60° right
Saw blade dimensions Ø mm
3.960 x 34 x 1,1
Weight approx.
875 kg
Article number
667100025
Capacity
Round 90°
330 mm
Square 90°
330 x 330 mm
Rectangular 90°
460 x 250 mm
Round 45°
305 mm
Square 45°
280 x 280 mm
Rectangular 45°
350 x 250 mm
Round 60°
205 mm
Square 60°
180 x 180 mm
Rectangular 60°
205 x 250 mm
